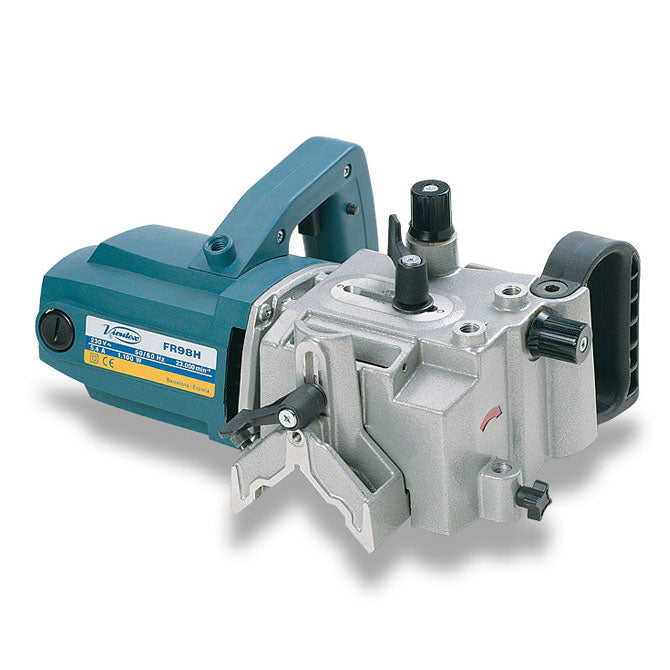

Shaping Planer FR98H by Virutex

SKU: 50140

Price:
Sale price$899.00
Dealers

Status

Available

Description

ToolsDesigned for shaping the edges of longitudinal beams and crossbeams and modelling coffered ceilings. Factory-fitted with straight blades for bevel-edging, ti also permits rounding or moulding of shapes by using the moulding blades included with the equipment or the optional blades set. The width of the straight or moulded profile obtained can be set between 0 and 40 mm. The guide on which the piece to be shaped rests can be moved with respect to the cutter, which means that different profiles can be made on an edge, according to the zone of the blade on which work is being done. There are two handles, one parallel to the main grip and at the same level, permitting comfortable work on longitudinal beams and vertical parts, and a top knob with two optional positions for work on horizontal surfaces, thus in both cases allowing a perfectly comfortable and secure two-handed grip on the machine. The machine is equipped with a smooth electronic starting system and safety connection cut-off switch to avoid undesired start-up. It is also equipped with a dust collection nozzle.

Specifications
Double insulation
Input power: 1100W
Planing width: 40 mm
Max. blades pitch diameter: 49 mm
No-load speed: 23.000 /min
Optional Accessories
  • 9800050 Base with guide extension. For using the machine in inverted position for shaping of mouldings, crossbeams, etc. with greater ease in the workshop.
  • 9800150 Radius copier Allows straight chamfered edges to be made on pieces with exterior circular curves. Edge rounding or cutting on radius (R=5, 10 or 15) is also possible using radius cutters 9841005
  • 6446073 Standard dust collector attachment 3.5 m

Additional Information

Model
Type
Planer
SKU
50140
Part Number
FR98H
Brand
Virutex
Technical - Main
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1.5HP (1100W)
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
