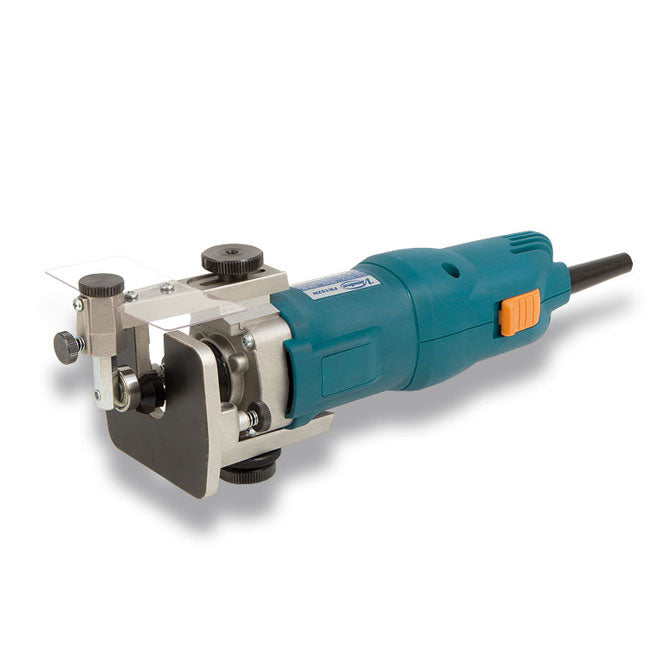

Type
Trimmer
SKU
55404
Part Number
FR192N/9200300
Barcode
8421752061019
Brand
Virutex
Status
Available
Description

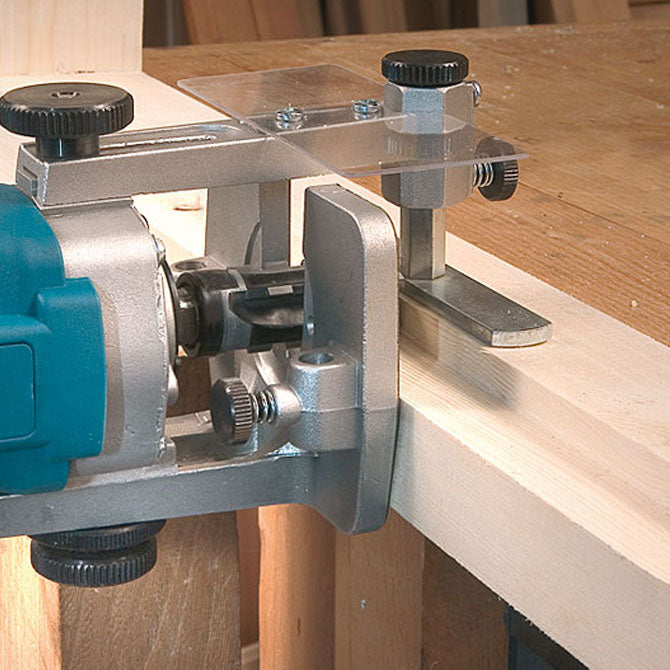

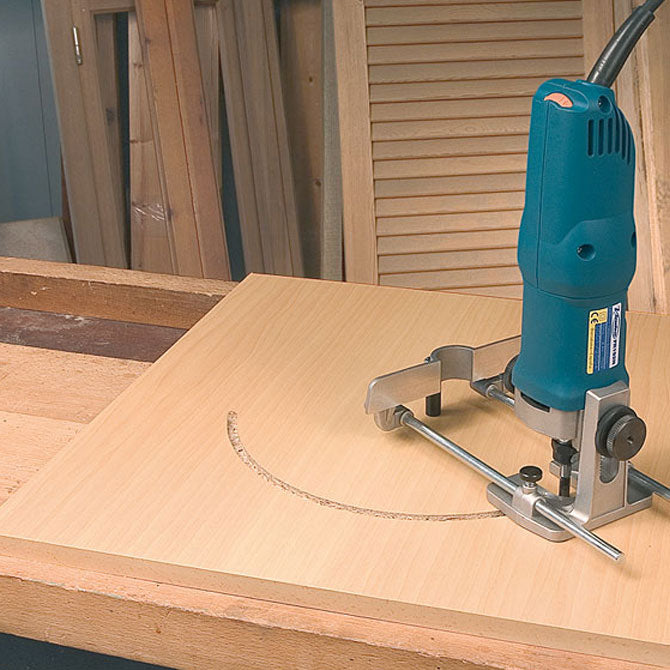

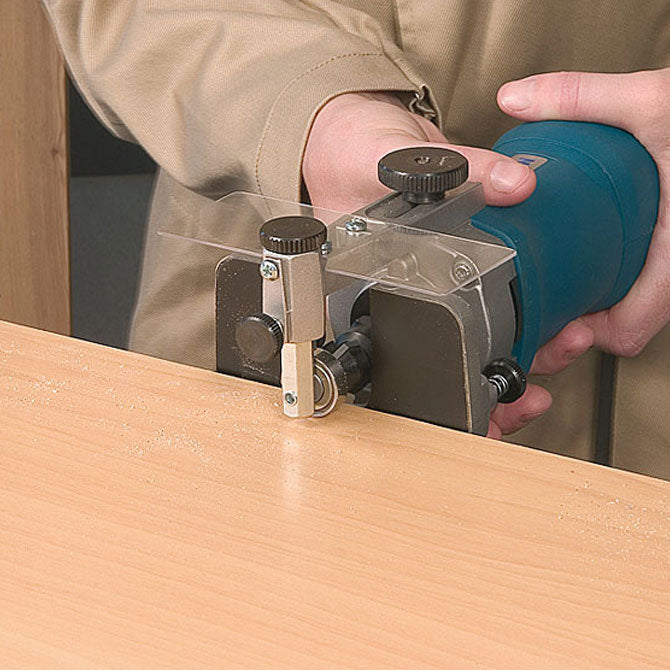

Light weight designed for several kind of jobs. Provides excellent finishing on laminate trimming. Very useful for making mouldings, working with high stability and precision. Ideal for making recesses for placing hinges with Virutex specialised templates. Its huge power allows it to make rabbets on doors or windows with the specific optional bit. It is also possible to make right or circular slots in an easy and precise way with only the accessories included as standard equipment.The FR192N is equipped with a powerful motor and an electronic speed control, for adjusting the speed constant independently to the working load.
Optional Accessories:-
- 1222024 Chuck collet 8 mm
- 1222085 Chuck collet 6.35 mm (1/4")
- 1250040 Sliding shoe
- 1250041 Flat sliding shoe
- 1850042 45 ° sliding shoe
- 1250078 25 mm flat sliding shoe
- 1240046 Rabbeting bit
- 3600000 AO93 Three-body template for fitting hinges
- 3900000 AM94 Four-body template for fitting hinges
- 1900000 AV93 Single body template for fitting hinges
- 1900200 PP19H Single body template for fitting hinges
- 1750000 ZB93 Head for fitting hinges.
Guide Rings:-
- 1250001 Ø ext. 10 mm for 6 mm bits
- 1250002 Ø ext. 12 mm for 8 mm bits
- 1250003 Ø ext. 14 mm for 10 mm bits
- 1250004 Ø ext. 16 mm for 12 mm bits
- 1250025 Ø ext. 18 mm for 14 mm bits
- 1250035 Ø ext. 20 mm for 16 mm bits
Additional Information
Model
Technical - Main
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1HP / 750W
Collet Capacity
6mm
Max. Tooling Diameter
25mm
Motor Speed - No Load
14,000-30,000m/min.
Dimensions
Product Weight (Net Weight)
1.8 kg
Country of Origin
Manufactured in
Spain
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
