Type
Edgebander
SKU
56712
Part Number
AG98R / 5200480
Barcode
8421752072374
Brand
Virutex
Status
Available
Description

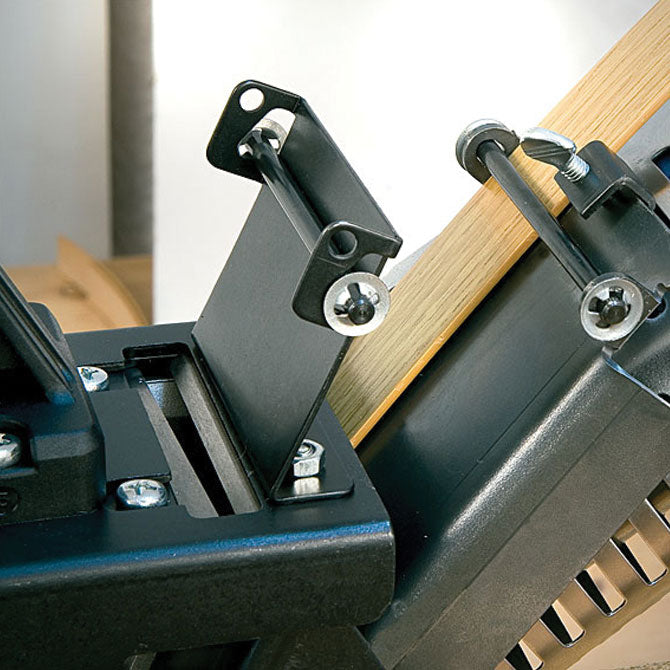

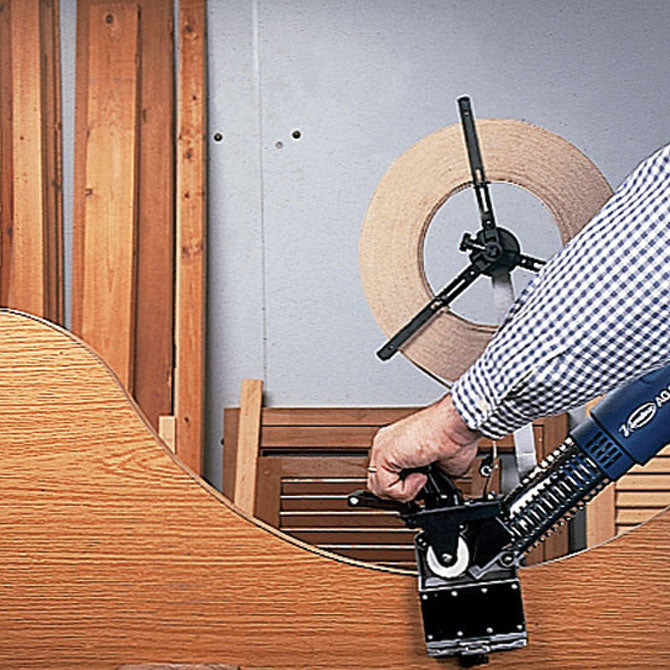

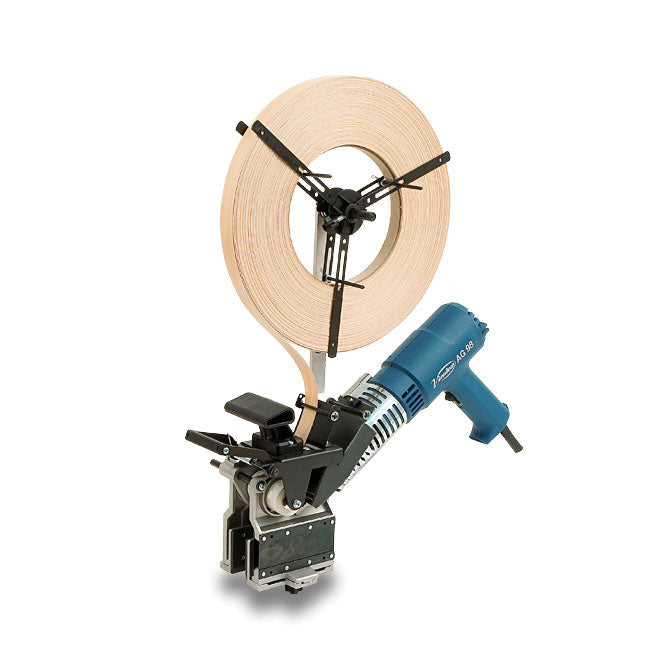

For banding pre-glued PVC, polyester, melamine and veneer tapes. Enables edgebanding of circular or shaped pieces. Its special design, with adjustable clamps ensures high precision work with great stability. Practical end trimming system included. Possibility to band flush with panel surface or with excess on either of both sides. Set up time is less than one minute.

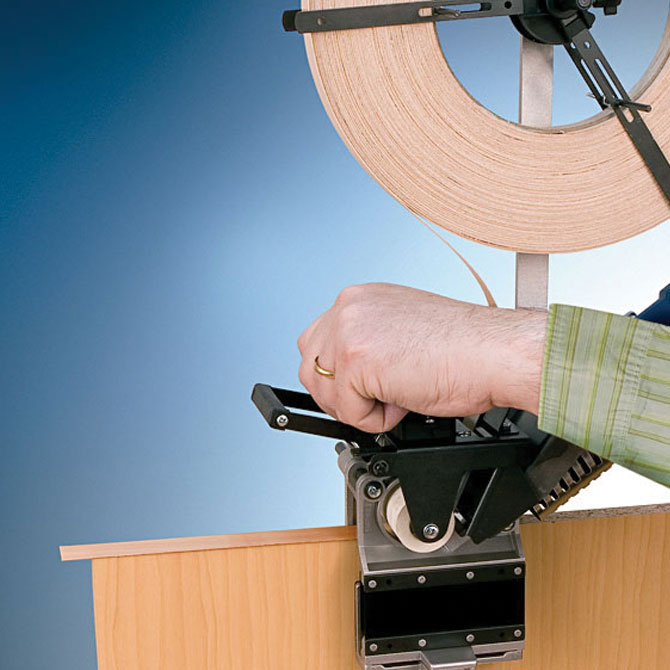

Two tape feeding systems: Holder for tape rolls up to 1 mm thickness and 50 mm width. Manual feeding for pre-cut strips up to 3 mm thickness and 25 mm width. It also includes as standard a roll holder for banding with rolls. Manual feeding for banding pre-cut strips up to 3 mm thickness and 25 mm width with high precision and stability.
Optional accessories:-
- AU93 Double edge trimmer
- RC21E Manual end trimmer
- RC221R Hand end trimmer (for 2 mm PVC tapes)
- 5246025 Roller at 4 ° specially designed for banding sloping surfaces on doors etc.
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
400L / Min.
Edging Thickness
0-1mm (maximum edging width of 50mm)
Edging Width
21-22mm
Temperature on Roller
525°C (Speed 2)
Dimensions
Product Weight (Net Weight)
2.8 kg
Workshop (Site) Info
Air Supply (CFM)
Air Supply (CFM)
CFM stands for Cubic Feet per Minute and is the most common way to measure airflow.
400L / Min.
Packaging + Shipping
Shipping Weight (Gross)
1.48 kg
